Hydro Phobic Acrylic Intraocular Lens

Hyphovue

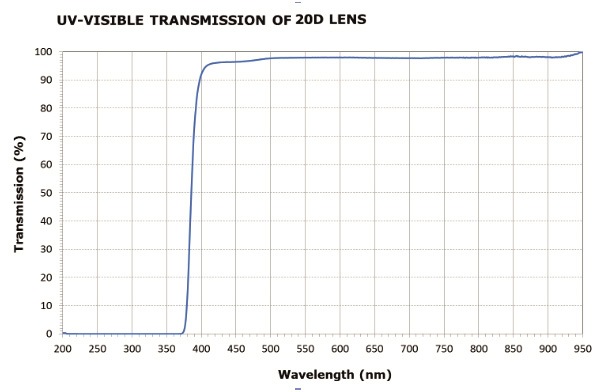

HYPHOvue Yellow series acrylic foldable IOLs made from pure hydrophobic acrylic polymer with UV-A blocking and violet Blue light absorption material. This is the same UV-A blocking and Violet Blue light filtering chromosphore that is in the human crystalline lens. Blue light absorption IOLs to reduce the risk of age related macular degeneration. Blue blocking IOLs reduce low light contrast sensitivity as well as color perception. These capabilities are critically needed for optimum vision of implant patients, particularly at night. Natural Yellow achieves complete natural protection without loss of contrast sensitivity or color perception.

Features

  • Aberration Neutral Aspheric optics-negative spherical aberration wave front technology.

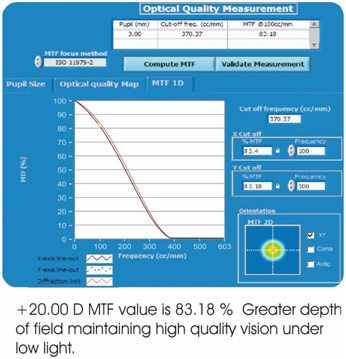

  • Excellent quality of vision and greatly increased contrast sensitivity.
  • Well polished smooth Hydrophobic optics helps delayed PCO and haptic for ease of unfolding.
  • 360° Square edge design provides uninterrupted contact at the haptic-optic junction to limit LEC’s migration.
  • 5° Angulations haptic design – continuous posterior surface contact with the capsular bag to prevent PCO.
  • The advanced IOL design-Stable and Perfect centration and ultimate stability in the capsular bag.
  • Optics is YAG Laser Compatible.
  • Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

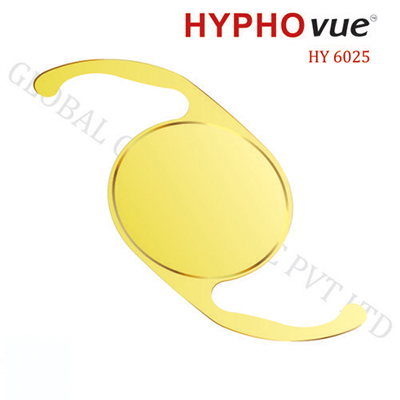

Model: HY 6025

Material Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanediol diacrylate (BDDA) + UV Blocker Benzotriazole. img
Lens Type Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses
Optic Design Aberration Neutral, Negative Aspheric Biconvex
Haptic Design “C” Design (Single Haptics), 0° Angulation.
Optic Body Diameter (Øb) 6.00 mm
Overall Diameter (Øt) 12.50 mm
Refractive Index @ 21°C 1.490
A- Constant (Optical Biometry) 118.7
A- Constant (Ultrasound) 118.4

Optiol Phob

Optiol Phob Aspheric Hydrophobic foldable IOL made from pure acrylic polymer and a proprietary Cryo-lathing process with no glistening. Hydro Phobic Aspheric series intraocular lenses with aberration free Ultra view advanced technology. Our Aspheric IOL’s with negative spherical aberration to compensate for positive aberration of an average cornea. Our Negative spherical aberration aspheric design results to reduce or eliminate the spherical aberration of the eye and peak visual performance like young adults after cataract surgery with our lens.

Features

  • Aberration Neutral Aspheric optics-negative spherical aberration wave front technology.
  • Excellent quality of vision and greatly increased contrast sensitivity.
  • Well-polished smooth Hydrophobic optics helps delayed PCO and haptic for ease of unfolding.
  • 360° Square edge design provides uninterrupted contact at the haptic-optic junction to limit LEC’s migration.
  • The advanced IOL design-Stable and Perfect centration and ultimate stability in the capsular bag.
  • Optics is YAG Laser Compatible.
  • Optics is YAG Laser Compatible.
  • Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

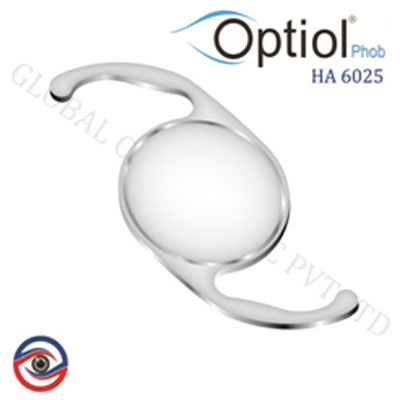

MODEL: HA 6025

Material Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) img
Lens Type Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses
Optic Design Aberration Neutral, Negative Aspheric Biconvex
Haptic Design “C” Design (Single Haptics), 0° Angulation.
Optic Body Diameter (Øb) 6.00 mm
Overall Diameter (Øt) 12.50 mm
Refractive Index @ 21°C 1.490
A- Constant (Optical Biometry) 118.7
A- Constant (Ultrasound) 118.4

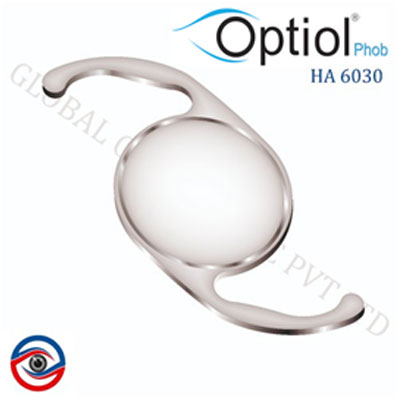

MODEL: HA 6030

Material Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) img
Lens Type Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses
Optic Design Aberration Neutral, Negative Aspheric Biconvex
Haptic Design “C” Design (Single Haptics), 0° Angulation.
Optic Body Diameter (Øb) 6.00 mm
Overall Diameter (Øt) 13 mm
Refractive Index @ 21°C 1.490
A- Constant (Optical Biometry) 118.7
A- Constant (Ultrasound) 118.4

Optiol Phobic - BLF

Optiol Phobic BLFYellow series acrylic foldable IOLs made from pure hydrophobic acrylic polymer with UV-A blocking and violet Blue light absorption material. This is the same UV-A blocking and Violet Blue light filtering chromosphore that is in the human crystalline lens. Blue light absorption IOLs to reduce the risk of age related macular degeneration. Blue blocking IOLs reduce low light contrast sensitivity as well as color perception. These capabilities are critically needed for optimum vision of implant patients, particularly at night.

Features

  • Aberration Neutral Aspheric optics-negative spherical aberration wave front technology.
  • Excellent quality of vision and greatly increased contrast sensitivity.
  • Well polished smooth Hydrophobic optics helps delayed PCO and haptic for ease of unfolding.
  • 360° Square edge design provides uninterrupted contact at the haptic-optic junction to limit LEC’s migration.
  • 5° Angulations haptic design – continuous posterior surface contact with the capsular bag to prevent PCO.
  • The advanced IOL design-Stable and Perfect centration and ultimate stability in the capsular bag.
  • Optics is YAG Laser Compatible.
  • Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

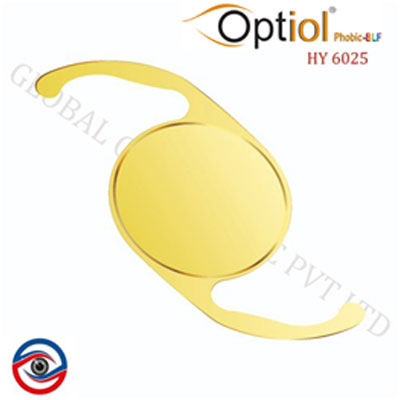

MODEL: HY 6025

Material Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) + UV Blocker Benzotriazole. img
Lens Type Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses
Optic Design Aberration Neutral, Negative Aspheric Biconvex
Haptic Design “C” Design (Single Haptics), 0° Angulation.
Optic Body Diameter (Øb) 6.00 mm
Overall Diameter (Øt) 12.50 mm
Refractive Index @ 21°C 1.490
A- Constant (Optical Biometry) 118.7
A- Constant (Ultrasound) 118.4

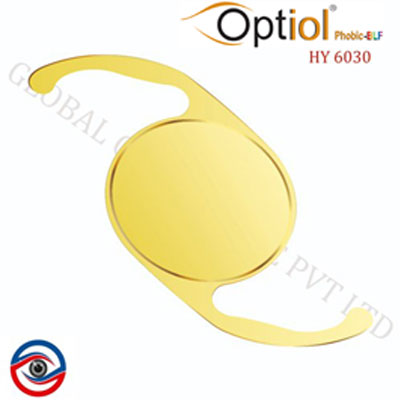

MODEL: HY 6030

Material Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) + UV Blocker Benzotriazole. img
Lens Type Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses
Optic Design Aberration Neutral, Negative Aspheric Biconvex
Haptic Design “C” Design (Single Haptics), 0° Angulation.
Optic Body Diameter (Øb) 6.00 mm
Overall Diameter (Øt) 13 mm
Refractive Index @ 21°C 1.490
A- Constant (Optical Biometry) 118.7
A- Constant (Ultrasound) 118.4
