Hyphodiff

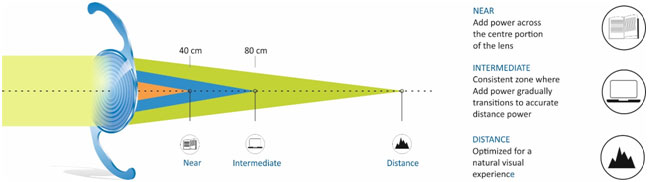

HYPHODIFF IOL is a hydrophobic diffractive Trifocal aspheric foldable intraocular lensprovide you better vision at all visions (Near, Intermediate and far).It’suniquely designed to provide maximum energy at near and optimum energy at distance.
Features
- Diffractive Refractive Trifocal-Enhanced performance continues, High quality vision at all distances and Outstanding Visibility in any Lighting condition.
- Glistening Free optic to reduce discomfort to patients.
- Aspheric optics-negative spherical aberration wave front technology.
- Advanced 360° Step Square edge design for long term protection against PCO with anti-edge glare feature.
- 5° Angulations haptic design – continuous posterior surface contact with the capsular bag to prevent PCO.
- The advanced IOL design-Stable and Perfect centration and ultimate stability to different capsular bag sizes.
- Available Diopters : +10.0 D to +30.0 D in 0.5 D Steps

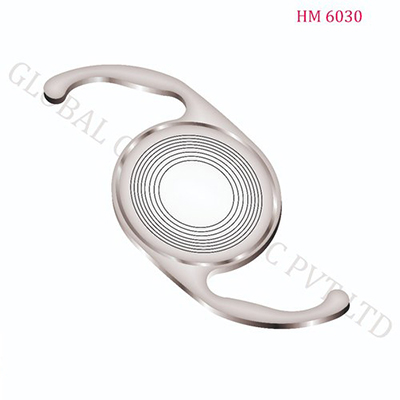

Model: HM 6030
| Material | Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) |  |
|---|---|---|
| Lens Type | Single Piece Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses | |
| Optic Design | Aberration Neutral, Negative Aspheric Biconvex | |
| Haptic Design | Force enduring haptics | |
| Optic Body Diameter (Øb) | 6.00 mm | |
| Overall Diameter (Øt) | 13 mm | |
| ABBE Number (35°C) | 37.6 | |
| Dry Refractive Index @ 21°C,546nm | 1.557 | |
| A- Constant (Optical Biometry) | 118.7 | |
| A- Constant (Ultrasound) | 118.4 |

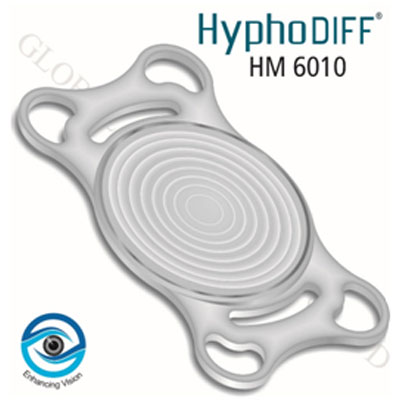

Model: HM 6010
| Material | Copolymer of Phenylethyl acrylate (PEA) and Phenylethyl methacrylate (PEMA) which is cross‐linked with Butanedioldiacrylate (BDDA) |  |
|---|---|---|
| Lens Type | Hydrophobic Acrylic Foldable Posterior Chamber Intraocular Lenses | |
| Optic Design | Aberration Neutral, Negative Aspheric Biconvex | |
| Haptic Design | 4 - Point Fixation (Four Haptics),0° Angulation. | |
| Optic Body Diameter (Øb) | 6.00 mm | |
| Overall Diameter (Øt) | 11 mm | |
| ABBE Number (35°C) | 37.6 | |
| Dry Refractive Index @ 21°C,546nm | 1.557 | |
| A- Constant (Optical Biometry) | 118.7 | |
| A- Constant (Ultrasound) | 118.4 |
Glowdiff Gold
Glowdiff Gold IOL is a Yellow Hydrophilic diffractive Trifocal aspheric foldable intraocular lensprovide you better vision (Near, Intermediate and far).It’s uniquely designed to provide maximum energy at near and optimum energy at distance.
Features
- Yellow tint to replicate natural lens colour and to block harmful high energy blue light.
- Diffractive Refractive Trifocal-Enhanced performance continues, High quality vision at all distances and Outstanding Visibility in any Lighting condition.
- Glistening Free optic to reduce discomfort to patients.
- Aspheric optics-negative spherical aberration wave front technology.
- Advanced 360° Step Square edge design for long term protection against PCO with anti-edge glare feature.
- The advanced IOL design-Stable and Perfect centration and ultimate stability to different capsular bag sizes.
- Available Diopters : +10.0 D to +30.0 D in 0.5 D Steps

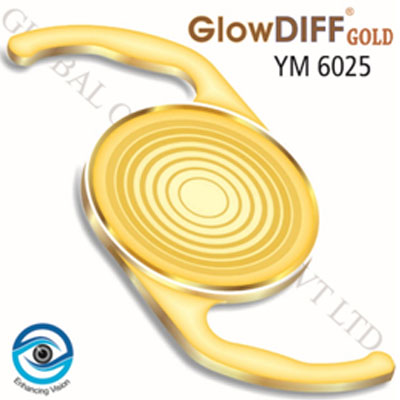

MODEL: YM 6025
| Material | Poly Hydroxy Ethyl Methacrylate Raw Material (PHEMA) with UV blocker. |  |
|---|---|---|
| Lens Type | Single Piece Hydrophilic Acrylic Foldable Posterior Chamber Intraocular Lenses | |
| Optic Design | Aberration Neutral, Negative Aspheric Biconvex | |
| Haptic Design | Force enduring haptics | |
| Optic Body Diameter (Øb) | 6.00 mm | |
| Overall Diameter (Øt) | 12.50 mm | |
| Refractive Index | 1.465 | |
| A- Constant (Optical Biometry) | 118.7 | |
| A- Constant (Ultrasound) | 118.4 |

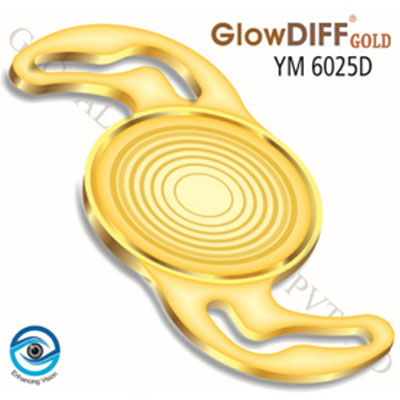

MODEL: YM 6025D
| Material | Poly Hydroxy Ethyl Methacrylate Raw Material (PHEMA). |  |
|---|---|---|
| Lens Type | Single Piece Hydrophilic Acrylic Foldable Posterior Chamber Intraocular Lenses | |
| Optic Design | Aberration Neutral, Negative Aspheric Biconvex | |
| Haptic Design | Force enduring haptics | |
| Optic Body Diameter (Øb) | 6.00 mm | |
| Overall Diameter (Øt) | 12.50 mm | |
| Refractive Index | 1.465 | |
| Estimated A- Constant | 118.4 |

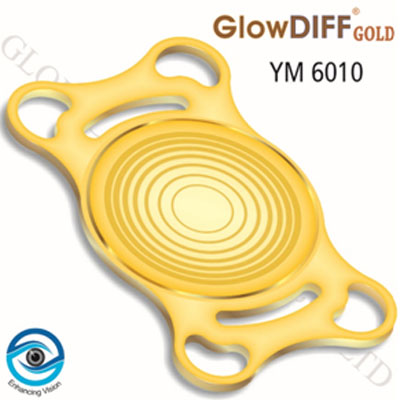

MODEL: YM 6010
| Material | Poly Hydroxy Ethyl Methacrylate Raw Material (PHEMA). |  |
|---|---|---|
| Lens Type | Single Piece Hydrophilic Acrylic Foldable Posterior Chamber Intraocular Lenses | |
| Optic Design | Aberration Neutral, Negative Aspheric Biconvex | |
| Haptic Design | 4 - Point Fixation (Four Haptics),0° Angulation. | |
| Optic Body Diameter (Øb) | 6.00 mm | |
| Overall Diameter (Øt) | 11 mm | |
| Refractive Index | 1.465 | |
| Estimated A- Constant | 118.0 |
