Global Ophthalmic Private Limited

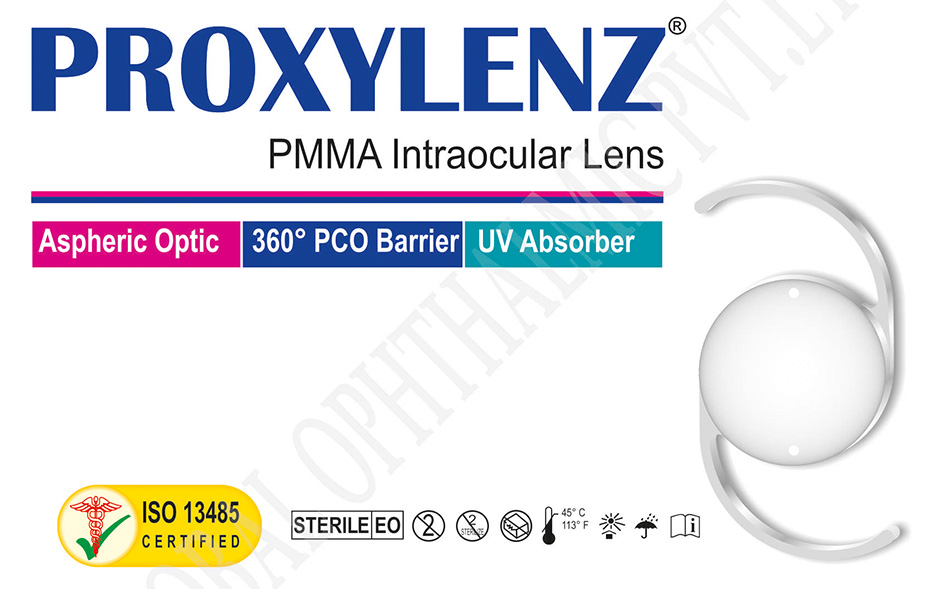

PROXY lenz

Our PROXY lenz Aspheric IOLs are designed with square edge. The 360° square edge acts as a complete barrier to epithelial cells and reduces incidence of PCO. The anterior surface of the Lens is round to avoid glare effect. We provide this lens in different sizes and designs as per the requirement of our clients.

Features

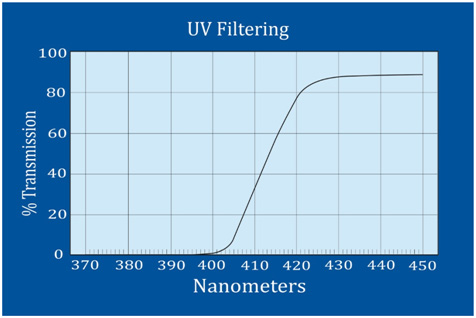

Highly biocompatible Clear PMMA-CQ with adequate UV blocking.
Aberration Natural Aspheric Biconvex optics. Excellent quality of vision, Greatly increased contrast sensitivity and reduced glare.
360°Square edge design provides uninterrupted contact at the haptic opticJunction to limit LEC's migration.
Smooth lens surface reduces bacterial adhesion, inflammatory cell Response.
Step-vaulted haptic design continuous posterior surface contact with the Capsular bag to prevent PCO.
Optics are YAG Laser Compatible.
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Model: PA 5025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PA 5220

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.25 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PA 5525

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.50 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PA 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Two

Glow vision

GLOWVISION Intraocular lenses are made up of high quality PMMA lens. It is placed behind the iris in the capsule. Implantation inside the capsular bag (first choice) or fix into the sulcus if the capsular bag is damaged. It is the widely used IOL for cataract surgery.

Features

Larger optic diameter.
Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.
Increased stability &Clear vision.
Optics are YAG Laser Compatible & Optic Design is the Spherical Biconvex.
Sterilized by Ethylene Oxide.
Single Piece PMMA Posterior Chamber Intraocular Lens “C” Design with step Vault.
Raw Material Made up of Poly Methyl Methacrylate (PMMA) with UV Filter
Refractive Index : 1.49

Model	Optic Diameter(Øb)	Overall Diameter (Øt)	Positioning Holes	A-Const	Diopter Range
PS 5025	5.00	12.50 mm	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
PS 5220	5.25	12.00	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
PS 5525	5.50	12.50	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
PS 6025	6.00	12.50	2	118.4	-10.0 D to +40.0 D(+10.0 D to +30.0 D in 0.5 D Steps)
PS 6030	6.00	13.00	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
PS 6530	6.50	13.00	2	118.2	+1.0 D to +30.0 D in 0.5 D Steps

Scleral Fixation IOL

Scleral Fixation IOL’s are made up of high quality PMMA lens. It is placed behind the iris in the capsule. Implantation inside the capsular bag (first choice) or fix into the sulcus if the capsular bag is damaged. It is the widely used IOL for cataract surgery.

Features

Larger optic diameter.
Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.
Holes in the Haptic Enables Manipulation of Lens into the Bag.
Increased stability &Clear vision
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMAPosterior Chamber Intraocular Lenses
Optic Design	Spherical Biconvex
Haptic Design	“C” Design with step Vault
Optic Body Diameter (Øb)	6.50 mm
Overall Diameter (Øt)	13.50 mm
Refractive Index	1.49
Estimated A - Constant	118.2
ACD	5.00 mm
Positioning Holes	Nil

Anterior chamber IOL

Anterior chamber IOL is fixed with the support of iris. It is used as backup lens primarily when there is damage to the Posterior Chamber. Anterior Chamber IOL is also used in refractive surgery – implanting a lens in phakic eye to correct the refractive power.

Features

Larger optic diameter.
Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.
4 Point Fixation Haptic Enables Manipulation of Lens into the Bag.
Increased stability &Clear vision.
Sterilized by Ethylene Oxide.
Available Diopters : -10.0 D to +40.0 D(+10.0 D to +30.0 D in 0.5 D Steps -10.0 D to +9.0 and +31.0 to +40.0 D in 1.0 D steps.

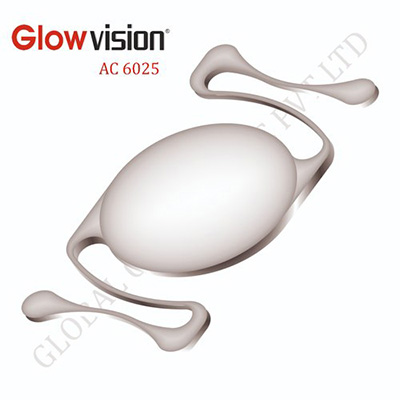

Model: AC 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMAAnterior Chamber Intraocular Lenses
Optic Design	Spherical Biconvex
Haptic Design	“S” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	115.3
ACD	5.00 mm
Positioning Holes	Nil

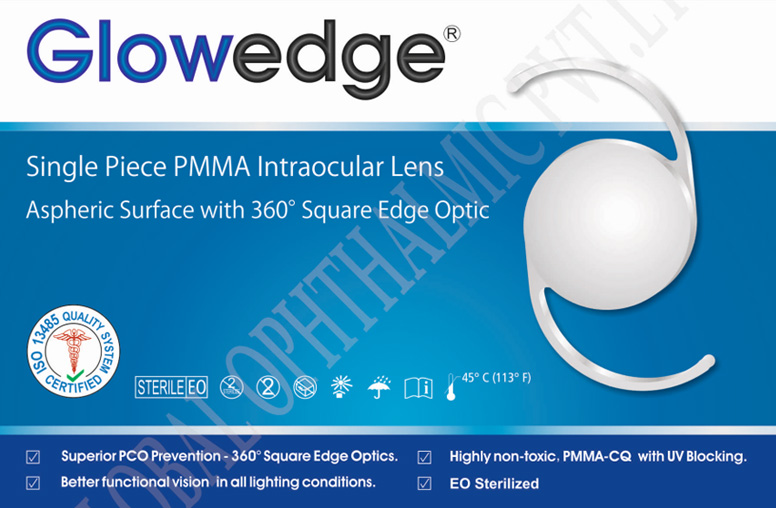

Glow Edge

GLOWEDGE Aspheric IOLs are made of PMMA material. It has 360° sharp edge on the posterior side of the lens and aspheric optic on anterior surface. Glowedge lens are designed with 360° sharp edge on the posterior side of the lens and aspheric optic with zero aberration on the anterior side of the IOL. This sharp edge of the IOL prevents the epithelial cells migrating to the posterior side, thereby reducing the PCO (Posterior capsule opacification) rate.

Features

Highly biocompatible Clear PMMA-CQ with adequate UV blocking.
Aberration Natural Aspheric Biconvex optics. Excellent quality of vision, Greatly increased contrast sensitivity and reduced glare.
360°Square edge design provides uninterrupted contact at the haptic opticJunction to limit LEC's migration.
Smooth lens surface reduces bacterial adhesion, inflammatory cell Response.
Step-vaulted haptic design continuous posterior surface contact with the Capsular bag to prevent PCO.
Optics are YAG Laser Compatible.
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Model: PE 5525

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA 360° Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.50 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PE 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA 360° Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

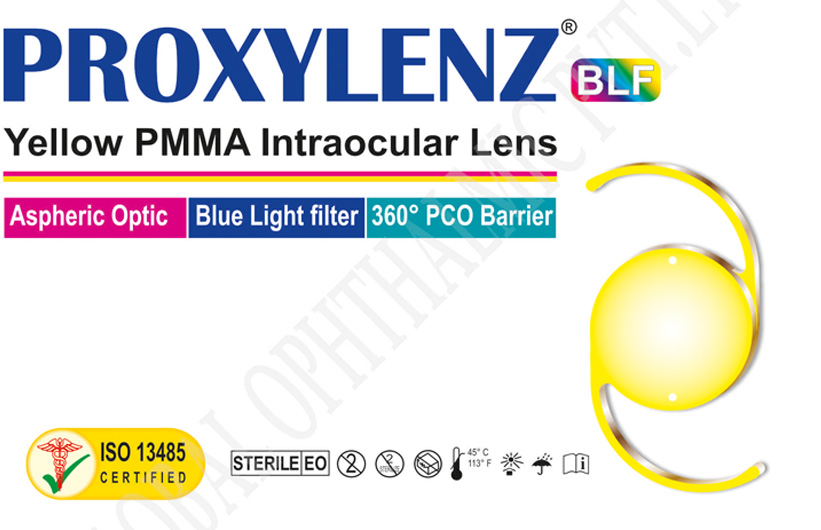

Proxy LenzBLF

Our PROXY LENZ Yellow Aspheric IOLs are designedwith square edge. The 360° square edge acts as a complete barrier to epithelial cells and reduces incidence of PCO. The anterior surface of the Lens is round to avoid glare effect. We provide this lens in different sizes and designs as per the requirement of our clients.

Features

“ YELLOW IOL” Filters High Energy of Blue Light.
Aberration Natural Aspheric Biconvex optics. Excellent quality of vision, greatly increased contrast sensitivity and reduced glare.
360°Square edge design provides uninterrupted contact at the haptic opticJunction to limit LEC's migration.
Smooth lens surface reduces bacterial adhesion, inflammatory cell Response.
Step-vaulted haptic design continuous posterior surface contact with the Capsular bag to prevent PCO.
Optics are YAG Laser Compatible.
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Model: PY 5025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PY 5525

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.50 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: PY 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Two

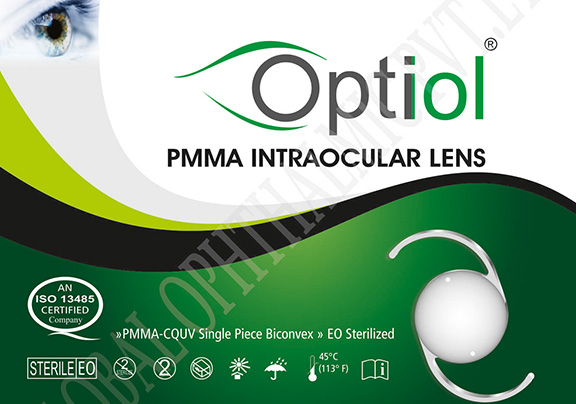

Optiol

OPTIOL Intraocular lenses are made up of high quality PMMA lens. It is placed behind the iris in the capsule. Implantation inside the capsular bag (first choice) or fix into the sulcus if the capsular bag is damaged. It is the widely used IOL for cataract surgery.

Features

Larger optic diameter.
Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.
Increased stability &Clear vision.
Optics are YAG Laser Compatible & Optic Design is the Spherical Biconvex.
Sterilized by Ethylene Oxide.
Single Piece PMMA Posterior Chamber Intraocular Lens “C” Design with step Vault.
Raw Material Made up of Poly Methyl Methacrylate (PMMA) with UV Filter
Refractive Index : 1.49

Model	Optic Diameter(Øb)	Overall Diameter (Øt)	Positioning Holes	A-Const	Diopter Range
OPS 5525	5.50	12.50 mm	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
OPS 6025	6.00	12.50	2	118.4	-10.0 D to +40.0 D(+10.0 D to +30.0 D in 0.5 D Steps)
OAC 6025	6.00	12.50	0	115.3	+1.0 D to +30.0 D in 0.5 D Steps

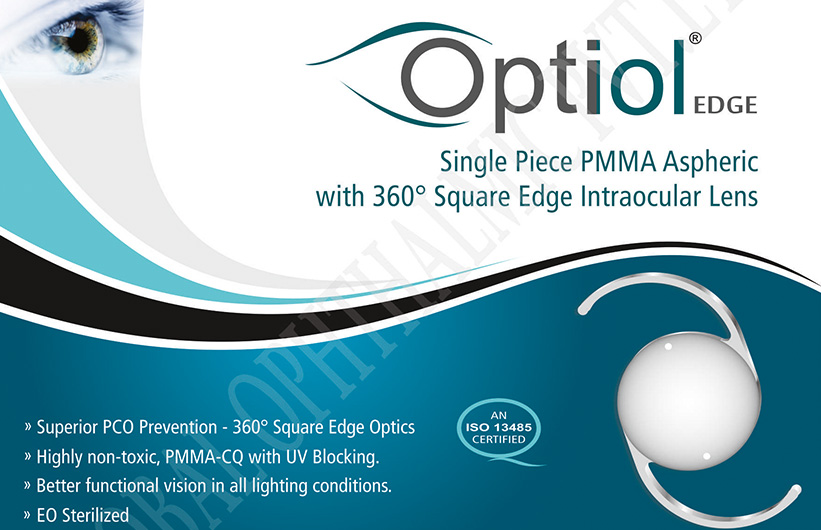

Optiol Edge

OPTIOL EDGE Aspheric IOLs are made of PMMA material. It has 360° sharp edge on the posterior side of the lens and aspheric optic on anterior surface. Optiol Edge lens are designed with 360° sharp edge on the posterior side of the lens and aspheric optic with zero aberration on the anterior side of the IOL. This sharp edge of the IOL prevents the epithelial cells migrating to the posterior side, thereby reducing the PCO (Posterior capsule opacification) rate.

Features

Highly biocompatible Clear PMMA-CQ with adequate UV blocking.
Aberration Natural Aspheric Biconvex optics. Excellent quality of vision, Greatly increased contrast sensitivity and reduced glare.
360° Square edge design provides uninterrupted contact at the haptic opticJunction to limit LEC's migration.
Smooth lens surface reduces bacterial adhesion, inflammatory cell Response.
Step-vaulted haptic design continuous posterior surface contact with the Capsular bag to prevent PCO.
Optics are YAG Laser Compatible.
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Model: GPA 5525

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA 360° Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.50 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: GPA 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Two

Optiol Gold

Our OPTIOL GOLD Yellow Aspheric IOLs are designedwith square edge. The 360° square edge acts as a complete barrier to epithelial cells and reduces incidence of PCO. The anterior surface of the Lens is round to avoid glare effect. We provide this lens in different sizes and designs as per the requirement of our clients.

Features

“ YELLOW IOL” Filters High Energy of Blue Light.
Aberration Natural Aspheric Biconvex optics. Excellent quality of vision, Greatly increased contrast sensitivity and reduced glare.
360° Square edge design provides uninterrupted contact at the haptic opticJunction to limit LEC's migration.
Smooth lens surface reduces bacterial adhesion, inflammatory cell Response.
Step-vaulted haptic design continuous posterior surface contact with the Capsular bag to prevent PCO.
Optics are YAG Laser Compatible.
Sterilized by Ethylene Oxide.
Available Diopters : +1.0 D to +30.0 D in 0.5 D Steps

Model: OPY 5525

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	5.50 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Nil

Model: OPY 6025

Material	Poly Methyl Methacrylate with UV Filter
Lens Design	Single Piece PMMA Aspheric with Square Edge Posterior Chamber Intraocular Lenses
Optic Design	Biconvex-Aberration Negative Aspheric
Haptic Design	Posterior Chamber IOL : “C” Design with step Vault
Optic Body Diameter (Øb)	6.00 mm
Overall Diameter (Øt)	12.50 mm
Refractive Index	1.49
Estimated A - Constant	118.40
ACD	5.00 mm
PCO Protection	360° Square Edge On Posterior Side
Positioning Holes	Two

Catracure

CATRACURE Intraocular lenses are made up of high quality PMMA lens. It is placed behind the iris in the capsule. Implantation inside the capsular bag (first choice) or fix into the sulcus if the capsular bag is damaged. It is the widely used IOL for cataract surgery.

Features

Larger optic diameter.
Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.
Increased stability & Clear vision.
Optics are YAG Laser Compatible & Optic Design is the Spherical Biconvex.
Sterilized by Ethylene Oxide.
Single Piece PMMA Posterior Chamber Intraocular Lens “C” Design with step Vault.
Raw Material Made up of Poly Methyl Methacrylate (PMMA) with UV Filter
Refractive Index : 1.49

Model	Optic Diameter(Øb)	Overall Diameter (Øt)	Positioning Holes	A-Const	Diopter Range
CPS 5525	5.50	12.50 mm	0	118.4	+1.0 D to +30.0 D in 0.5 D Steps
CPS 6025	6.00	12.50	2	118.4	-10.0 D to +40.0 D(+10.0 D to +30.0 D in 0.5 D Steps)
CAC 6025	6.00	12.50	0	115.3	+1.0 D to +30.0 D in 0.5 D Steps

PMMA Intraocular Lens

Proxy LenzBLF

Features

Model: PY 5025

Model: PY 5525

Model: PY 6025
